Constructing polygons with equal area

Posted on by

The power of GeoGebra lies not only for demonstrating a concept but more so for creating a situation where students are made to think, solve problems, and reason mathematically. Here is a sample lesson on how this can be done. The lesson involves the concept of area of triangles and constructing parallel lines applied to problems involving preserving areas of polygons. The most ideal situation is for students to explore on the applets individually or in small group. If this is not possible and the students have no computers, the applets can be projected. The teacher can then call a students or two to explore the applets. The idea is to stimulate students’ thinking to think of explaining why the transformations of the shapes are possible. The students should have a triangle rulers or straight edge with them. The lesson will not be complete if the students cannot devise a procedure for transforming a triangle into other polygonal shapes with the area preserved.

The following applet may be used in the introductory activity to teach about triangles with equal areas. Click here to explore. The applet shows that all triangles with equal base and have equal heights or altitude have equal areas. That’s pretty obvious of course.

The next applet is more challenging but uses the same principle as the first.
Depending on the previous knowledge of your students you can give this second applet right away without showing the first applet on triangles. Click here or the worksheet below explore and answer the problem.

Extension problems using the same principle about area of triangles.

triangle rulers
  1. Given a triangle, construct the following polygons equal in area to the given triangle using triangle rulers and pencil only:  a) parallelogram; b)trapezoid; c) hexagon. (There’s nothing that should prevent you from using GeoGebra to construct them.)
  2. The Rosales and Ronda families are not very happy with their piece of land because of the narrow corners. Help this family to draw a new boundary line without changing the land area of each family.

I will deprive you of the fun if I will show the answers here right away, won’t I?

I will appreciate feedback on this lesson.

Posted in Algebra, Geogebra, Geometry, High school mathematics

Teaching with GeoGebra: Squares and Square Roots

Posted on by

This post outlines a teaching sequence for introducing the concept of square roots in a GeoGebra environment. Of course you can do the same activity using grid papers, ruler and calculator. However, if the students have access to computers then I highly recommend that you use GeoGebra to do this. In my post GeoGebra and Mathematics, I argued that the more the students understand the mathematics behind GeoGebra, the more confident they could become in using this tool. The earlier the exposure to this environment, the better. The way to do this is to integrate the learning of the tool in learning mathematics.

The figure below is the result of the final activity in my proposed teaching sequence for teaching square roots of numbers and some surds or irrational numbers. The GeoGebra tool that the students is expected to learn is the tool for constructing general polygons and regular polygons (the one in the middle of the toolbar).

Squares and Square Roots

The teaching sequence is composed of four activities.

Activity 1 involves exploration of the two polygon tools: polygons and regular polygons. To draw a polygon using the polygon tool is the same as drawing polygons using a ruler. You draw two pints then you use the ruler/straight edge to draw a side. But with Geogebra you click the points to determine the corners of the polygon and Geogebra will draw the lines for you. In the algebra window you will see the length of the segment and the area of the polygon. Click here to explore.

GeoGebra shows further its intelligence and economy of steps in Activity 2 which involves drawing regular polygons. Using the regular polygon tool and then clicking two points in the drawing pad, GeoGebra will ask for the number of sides of the polygon. All the students need to do is to type the number of sides of their choice and presto they will have a regular polygon. Click here to explore.

Activity 3 is the main activity which involves solving the problem Draw a square which is double the area of another square. Click here to take you to the task.

Activity 4 consolidates ideas in Activity 3. Ask the students to click File then New to get a new window from the previous activity’s applet then ask them to draw the figure above – Squares and Square Roots.  You can also use the figure to compare geometrically the values of \sqrt{2} and 2 or  show that \sqrt{8} = 2\sqrt{2}. This activity can be extended to teach addition of radicals.

Like the rest of the activities I post here, the learning of mathematics, in this case the square roots of numbers, is in the context of solving a problem. The activities link number, algebra, geometry and technology. Click here for the sequel of this post.

This is the second in the series of posts about integrating the teaching of GeoGebra and  Mathematics in lower secondary school. The first post was about teaching the point tool and investigating coordinates of points in a Cartesian plane.

GeoGebra book:

Model-Centered Learning: Pathways to Mathematical Understanding Using GeoGebra

Posted in Geometry

Problem Solving Involving Quadrilaterals

Posted on by

‘To understand mathematics is to make connections.’ This is one of the central ideas in current reforms in mathematics teaching. Every question, every task a teacher prepares in his/her math classes should contribute towards strengthening the connections among concepts. There are many ways of doing this. In this post I will share one of the ways this can be done: Use the same context for different problems.

The following are some of the problems that can be formulated based on quadrilateral BADF.  You can pose these problems to your class but the best way is to simply show the diagram to the students then ask them to formulate the problems themselves.

quadrilateral

Problem #1. What is the area of the quadrilateral? Show different methods.

The solution to this question depends on the grade level of students. The one shown below can be done by a Grade 5 or 6 student. Continue reading “Problem Solving Involving Quadrilaterals” →

Posted in Algebra, High school mathematics, Math investigations

Teaching combining algebraic expressions with conceptual understanding

Posted on by

In Math investigation about polygons and algebraic expressions I presented possible problems that students can explore. In this post, I will share some ideas on how the simple investigation of drawing polygons with the same area can be used as an introductory lesson to teach operations with algebraic expressions with meaning and understanding. Like the rest of the lessons in this blog, this lesson is not so just about learning the math but also making sense of the math and engaging students in problem solving.

The lesson consists of four problem solving tasks to scaffold  learning of adding, subtracting, multiplying and dividing algebraic expression with conceptual understanding.

Problem 1 – What are the different ways can you find the area of each polygons? Write an algebraic expression that would represent each of your method.

The diagram below are just some of the ways students can find the area of the polygons.

1. by counting each square
2. by dissecting the polygons into parts of a rectangle
3. by completing the polygon into a square or rectangle and take away parts included in the counting
4. by use of formula

The solutions can be represented by the algebraic expressions written below each polygon. Draw the students’ attention to the fact that each of these polygons have the same area of 5x^2 and that all the seven expressions are equal to5x^2 also.

Multiple representations of the same algebraic expressions

Problem 2 – (Ask students to draw polygons with a given area using algebraic expressions with two terms like in the above figure. For example a polygon with area 6x^2-x^2.

Problem 3 – (Ask students to do operations. For example 4.5x^2-x^2.)

Note: Whatever happens, do not give the rule.

Problem 4 – Extension: Draw polygons with area 6xy on an x by y unit grid.

These problem solving tasks not only links geometry and algebra but also concepts and procedures. The lesson also engages students in problem solving and in visualizing solutions and shapes. Visualization is basic to abstraction.

There’s nothing that should prevent you from extending the problem to 3-D. You may want to ask students to show the algebraic expression for calculating the surface area of  solids made of five cubes each with volume x^3. I used Google SketchUp to draw the 3-D models.

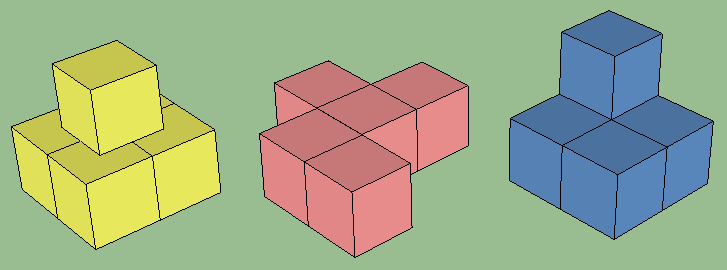

some possible shapes made of 5 cubes

Point for reflection

In what way does the lesson show that mathematics is a language?
