Constructing polygons with equal area

Posted on by

The power of GeoGebra lies not only for demonstrating a concept but more so for creating a situation where students are made to think, solve problems, and reason mathematically. Here is a sample lesson on how this can be done. The lesson involves the concept of area of triangles and constructing parallel lines applied to problems involving preserving areas of polygons. The most ideal situation is for students to explore on the applets individually or in small group. If this is not possible and the students have no computers, the applets can be projected. The teacher can then call a students or two to explore the applets. The idea is to stimulate students’ thinking to think of explaining why the transformations of the shapes are possible. The students should have a triangle rulers or straight edge with them. The lesson will not be complete if the students cannot devise a procedure for transforming a triangle into other polygonal shapes with the area preserved.

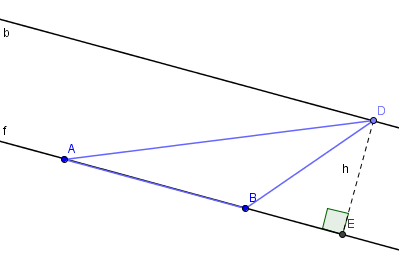

The following applet may be used in the introductory activity to teach about triangles with equal areas. Click here to explore. The applet shows that all triangles with equal base and have equal heights or altitude have equal areas. That’s pretty obvious of course.

The next applet is more challenging but uses the same principle as the first.
Depending on the previous knowledge of your students you can give this second applet right away without showing the first applet on triangles. Click here or the worksheet below explore and answer the problem.

Extension problems using the same principle about area of triangles.

triangle rulers
  1. Given a triangle, construct the following polygons equal in area to the given triangle using triangle rulers and pencil only:  a) parallelogram; b)trapezoid; c) hexagon. (There’s nothing that should prevent you from using GeoGebra to construct them.)
  2. The Rosales and Ronda families are not very happy with their piece of land because of the narrow corners. Help this family to draw a new boundary line without changing the land area of each family.

I will deprive you of the fun if I will show the answers here right away, won’t I?

I will appreciate feedback on this lesson.

Posted in Algebra, Geometry, Misconceptions, Teaching mathematics

Mistakes and Misconceptions in Mathematics

Posted on by

Misconceptions are very different from the mistakes students make. Mistakes are not consciously made. Misconceptions are. Mistakes are usually one-off, while misconceptions, the gods forbid, could be for keeps. Mistakes are made by a few, misconceptions are made by many and, repeatedly.

Students can figure out their mistakes by themselves because mistakes are usually due to carelessness. They cannot do the same for misconceptions. Misconceptions are committed because students think they are correct.

How can misconceptions be addressed? By undressing them, carefully exposing them until the students see it. It cannot be corrected by simply marking them x because misconceptions are usually made with full knowledge.

The following are common misconceptions in arithmetic, algebra and geometry:

1. Did we not learn that multiplication is repeated addition? So, -3 x -4 = -3 + -3 + – 3 +-3 = -12?

2. Didn’t we learn that to multiply fractions we simply multiply numerators and we do the same with the denominators? Didn’t the teacher say multiplication is simply repeated addition so {\frac{3}{5}}+{\frac{2}{3}}={\frac{5}{8}}?

3. Did not the teacher say x stands for a number? So in 3x – 5, if x is 5, the value of the expression is 35 – 5 = 30?

4. Did not the teacher/book say to always keep the numbers and decimal points aligned? So if Lucy is 0.9 meters and her friend Martha is 0.2 taller, Martha must be 0.11 meters in height?

5. Did we not learn that the more people there are to share a cake the smaller their portion? So {\frac{10}{16}}<{\frac{4}{5}}<{\frac{3}{4}}<{\frac{1}{2}}?

6. Did we not learn that by the distributive law 2(a+b) = 2a + 2b? So, (a+b)^2=a^2+b^2?

7. Did not the teacher show us that (x-3)(x+1) = 0 implies that (x-3) = 0 and (x+1) = 0 so x = 3 and x = -1? Hence in (x-3)(x+4) = 8, (x-3) = 8 and x +4 = 8 so x = 11 and x = 4?

8. Did we not learn that the greater the opening of an angle, the bigger it is? So, angle A is less than angle B in the figure below.

9. Did we not learn that you if you cut from something, you make it smaller? Hence in the diagram below, the perimeter of the polygon in Figure 2 is less than the perimeter of original polygon?

10. Isn’t it that the base is the one lying on the ground?

There’s nothing a teacher should worry about mistakes. There’s everything to worry about misconceptions. Good teaching practice exposes misconceptions, not hide them.

You might want to check out this book:

Posted in Geogebra, Geometry

Geometric relations – angles made by transversal

Posted on by

Geometry is a natural area of mathematics for which students should develop reasoning and justification skills and their appreciation of the logico-deductive part of mathematics that build across the grades. Learning tasks therefore should be so designed so that the focus of the learning is on the development of these skills as well and not merely on the learning of facts.

Consider the GeoGebra applets in Figures 1 and 2 below. Which of them will you use for teaching the relationships among the angles made by transversal with parallel lines? Before this lesson of course, the students already learned about linear pairs. Click the figures below to explore the applets before you continue reading.

In the first figure, dragging D or F along the parallel lines, the students will observe that there are angles that will always be equal. Thus from this, they can make the following conjectures:

(1) the alternate interior angles are equal;

(2) the vertical angles are equal;

(3) the corresponding angles (a pair of interior and exterior angles on the same side of the transversal) are equal; and,

(4) the pair of exterior and interior angles on the same side of the transversal sum up to 180 degrees.

In all these cases, the students are reasoning inductively. They will generalize from the measures they observed. Because of this, there seem to be no need for proof since there were bases for the generalizations. The measures of the angles. In this activity students will have learned geometric facts but not the geometric reasoning. Inductive reasoning maybe, but not deductive reasoning.

Contrast the first applet  to the second one. Dragging D or F along the parallel lines, the students will observe that the sum of the pair of exterior -interior angles on the same side of the transversal is always 180 degrees. They will also observe that the other angles also changes. The teacher can then challenge the students to make predictions about the measures of these angles and the relationships among them. These will create a need for proof.

And how should the proof look like? My suggestion is not to be very formal about it like using a two-column proof. For example, to prove that measures of vertical angles are always equal they can set up their proof like these:

To prove p = t:

p + s = 180

s + t = 180

p + s = s + t

p = t.

Students can very well set-up an explanation like this. They have seen it when they learned about solving systems of linear equation. What more, it uses the very important property of equality – the transitive property: If a = c, and b = c, then a = b. Great way to link algebra and geometry.

Posted in Geogebra, Geometry

Problem on proving perpendicular segments

Posted on by

This problem is a model created to solve the problem posed in the lesson Collapsible.

In the figure CF = FB = FE. If C is moved along CB, describe the paths of F and E. Explain or prove that they are so.

This problem can be explored using GeoGebra applet.  Click this link to explore before you read on.

perpendicular segments

One way to prove that FC is a straight line and perpendicular to AC is to show that FC is a part of a right triangle. To do this to let x be the measure of FCB. Because FCB is an isosceles triangle, FBC and CFB is (180-2x).  This implies that EFB is 180-2x being supplementary to CFB thus CFB must be 2x. Triangle EFB is an isosceles triangle so FBC must be (180-2x)/2. Adding CFB and FBC we have x+ (180-2x)/2 which simplifies to 90. Thus, EB is perpendicular to CB.

The path of F of course is circular with FB as radius.
